Sound insulation material SGM Uniton F4
sound insulation material, 1000 x 750 mm, thickness 4 mm, weight 0.4 kg/m²
More about the product
More about the product
We will help you with your purchase
- Use our consulting room
- You can return the goods to us within 14 days
- Try the product at our store
Sound insulation material SGM Uniton F4

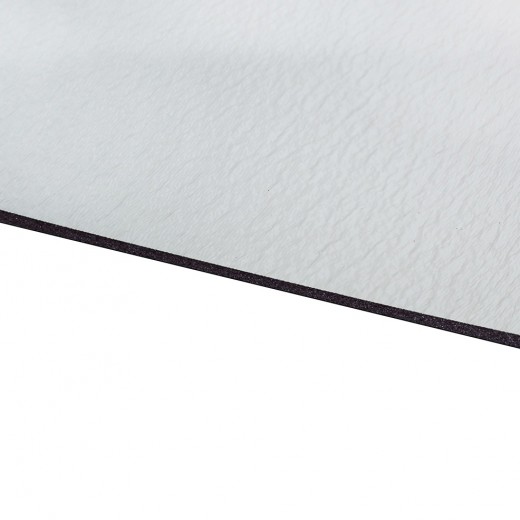

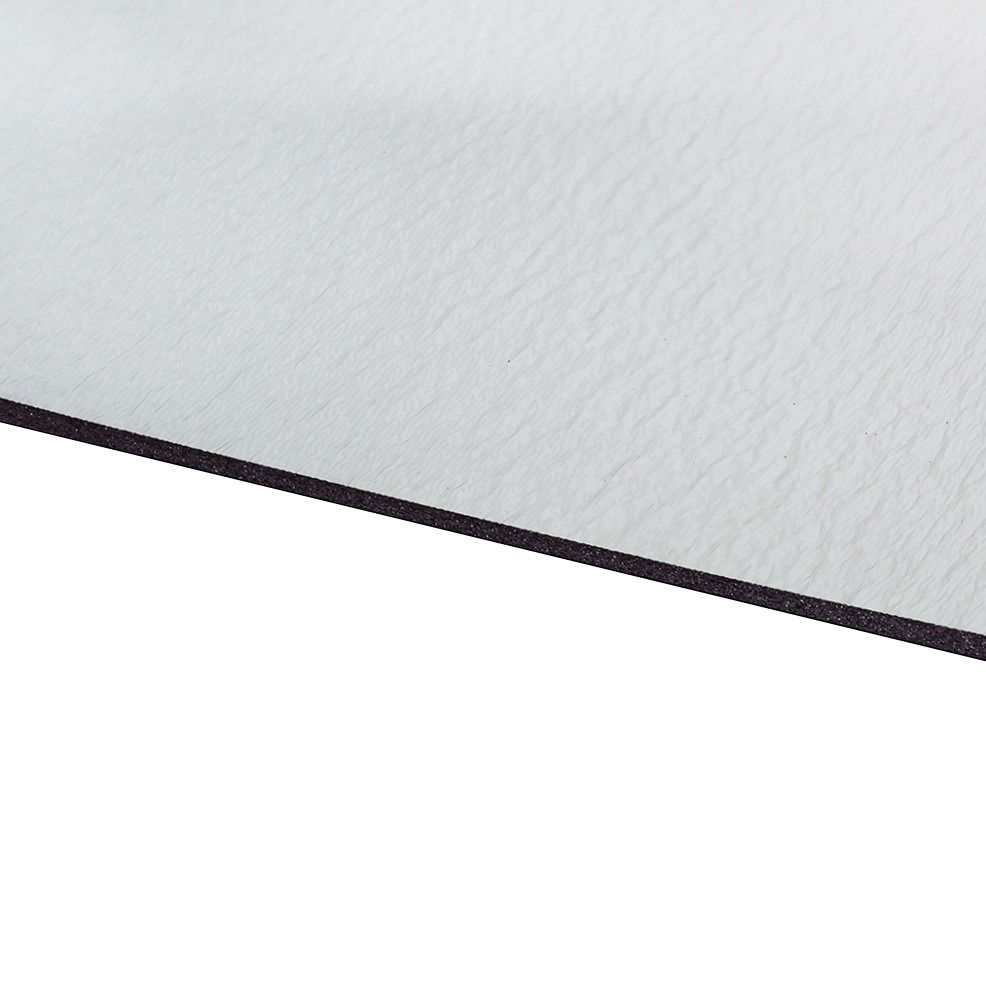

SGM Uniton F4 is a sound- and heat-insulating material made on the basis of cross-linked polyethylene foam with an improved moisture-resistant adhesive layer. The material also includes aluminum foil that increases strength, moisture protection and thermal insulation properties. Uniton is an extremely light material with a weight of only 0.4 kg/m², which was developed especially for installations where the main task is not to increase the weight of the car too much and at the same time effectively dampen it. The material is highly flexible and can be applied even to highly embossed surfaces. It is absolutely waterproof, does not absorb moisture and does not rot. The extremely adhesive self-adhesive layer guarantees effectiveness at -40 °C to +120 °C. Available in 4 and 8 mm thickness. Compared to the base material SGM Izolontape, Uniton has higher flexibility and a more effective adhesive layer.
Main properties of SGM Uniton F4 material
- Sound and heat insulating material suitable for soundproofing any areas of the car.
- High sound insulation ability while maintaining a very low weight.
- The material includes aluminum foil that increases strength, moisture protection and thermal insulation properties.
- 100% resistance to water and moisture, the material does not absorb moisture and does not rot.
- Resistance to extreme temperatures with the same adhesive effect at temperatures from -40 °C to +100 °C.
- High flexibility of the material for quick and easy application even on highly embossed surfaces.
- The ability of thermal insulation and protection against heat loss.
Technical parameters of SGM Uniton F4 material
- Thickness: 4 mm
- Size: 1000 x 750 mm
- Mass: ?
- Specific weight: 0.4 kg / m²
- Adhesion: 7 N / cm
- Black colour
- Price for 1 piece
Where to apply the SGM Uniton F4 material
SGM Uniton is intended for soundproofing practically all areas of the car. Due to its extremely low weight, its use is especially suitable for installations where you do not want to increase the weight of the car too much. It is applied as a second layer to an anti-vibration material that prevents vibrations and noise at the lowest frequencies (e.g. SGM Beta 2 or SGM Alpha 2 ). The most common uses of SGM Uniton F4 soundproofing material:- Front and back doors
- The suitcase lid
- Floor
- Engine compartment bulkhead
- Central tunnel
- Trunk
- Front wheel arches
- Rear wheel arches
- Torpedo
- Hood
About SGM damping materials
The Russian company SGM Technology was founded in 2006, and since then it has been one of the leading Russian manufacturers of sound and heat insulation materials for the automotive, shipbuilding, aviation and construction industries. The combination of excellent physical properties of materials and technological methods is the result of the highly efficient performance of the specialized workforce of SGM, which consists of specialists from the best technical universities of Russia. Currently, SGM offers over 200 types of materials that meet the strictest quality and stability standards with certification according to ISO 9001: 2008 and ISO / TS 16949. Long-term cooperation with such giants as Bosch or LG is proof of the highest quality of SGM products, which has long been one of the best on the market today. At the turn of 2019 and 2020, the SGM company presented hi-tech noise-reducing materials from the top Prime series, which in their performance slightly surpass even the premium materials of the market leader in noise reduction from Comfortmat. You can buy the products of both highly competitive manufacturers, who are constantly competing with innovations in the field of vehicle sound deadening, on our e-shop with a guarantee of the most technologically advanced and most effective products of today. Thanks to the official representation of our company for the Czech Republic and Slovakia, you can count on sufficient stock and professional service.| Catalog number | SGM UNITON F4 |
| Brand | SGM |
| Oversized shipment | Yes, |
| Links | Official web presentation |
| Material type | Sound and heat insulating |
| Thickness | 4 mm |
| Dimension | 1000 x 750 mm |
| Anti-noise membrane | No |
| Basis weight | 0.4 kg / m² |
| Adhesion | 7N/cm |
| Water resistance | Yes |
| Heat insulation | Yes |
| Color | Silver |
| Price for | 1 piece |
| Layer order | 2nd layer |
